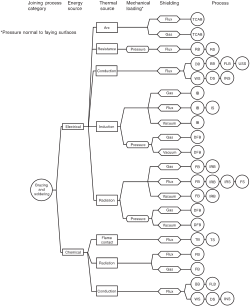

Brazing and soldering processes - AWS A3.0 2001

File:Photonic Soldering.ogv

Fitting1537

Weichlot

Soldering is a process in which two or more items (usually metals) are joined together by melting and putting a solder (filler metal) into the joint, the solder having a lower melting point than the adjoining metal. Unlike welding, soldering does not involve melting the work pieces. In soldering, the work pieces are heated with a soldering iron and then solder is melted into the joint. The solder must be protected from oxidation, and this is often achieved by using a flux.

Types of Soldering

There are several types of soldering, each suited for different applications:

• Soft Soldering is characterized by the low melting point of the solder, typically less than 400 degrees Celsius. It is commonly used in electronics and plumbing. The low melting point makes it unsuitable for high-temperature applications.

• Hard Soldering involves the use of a silver solder with a higher melting point, often used in jewelry making and metalwork requiring a stronger joint.

• Brazing is similar to hard soldering but uses even higher temperatures and a brass-based filler material. It is used in applications requiring a durable joint, such as in the construction of metal structures.

Soldering Process

The basic steps in the soldering process include:

1. Cleaning the metal surfaces to be joined to remove any oxidation or contaminants.
2. Application of Flux to the clean surfaces to prevent re-oxidation and to improve the wetting of the surfaces by the solder.
3. Heating the parts to be joined with a soldering iron or torch.
4. Applying the Solder to the joint, allowing it to melt and flow into the interface between the parts.
5. Cooling the joint rapidly to solidify the solder, forming a strong bond.

Equipment

Key equipment used in soldering includes:

• Soldering Iron: A hand tool used to heat the solder and the work pieces.
• Solder: A metal alloy with a low melting point used to join metal surfaces.
• Flux: A chemical cleaning agent used to prevent oxidation of the base and filler materials.
• Soldering Station: A more advanced tool for soldering that typically includes temperature control.

Safety Considerations

Soldering can produce fumes that are hazardous to health, particularly when using fluxes containing acids or when soldering materials like lead. Proper ventilation and the use of safety equipment like gloves and safety glasses are important.

Applications

Soldering is widely used in electronics to join wires and components to printed circuit boards. It is also used in plumbing, jewelry making, and metalwork for creating air- and water-tight joints.

See Also

• Welding
• Metalworking
• Printed Circuit Board
• Electronics
