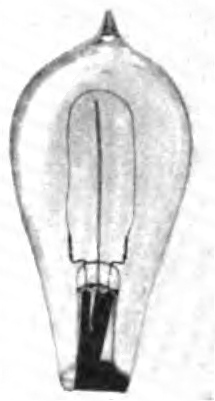

Edison effect bulb 1

Fleming valves

Vacuum tube, also known as a thermionic valve in the United Kingdom and certain other regions, is an electronic device that controls the flow of electric current through a vacuum. It was a critical component in the development of electronic technology, being used in the early twentieth century in radio, television, and long-distance telephone systems, as well as in the first computers. Despite being largely supplanted by semiconductor devices in most applications, vacuum tubes still find use in certain areas such as high-power RF amplifiers, audio amplification, and some specialized applications.

History

The vacuum tube was developed in the early 20th century, with key contributions from inventors such as John Ambrose Fleming, who invented the diode, and Lee De Forest, who invented the triode, which added an additional element (the grid) to the diode, allowing it to amplify signals. This innovation was crucial for the development of radio broadcasting, television, and early computer technology.

Types of Vacuum Tubes

There are several types of vacuum tubes, each designed for specific functions. These include:

• Diodes: Contain two electrodes (an anode and a cathode) and are used primarily for rectifying alternating current (AC) to direct current (DC).

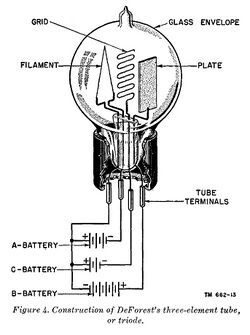

• Triodes: Have three electrodes (an anode, cathode, and grid) and are used to amplify signals.
• Tetrodes: Add a second grid, called a screen grid, to the triode design for improved performance.
• Pentodes: Include a third grid, called a suppressor grid, further improving performance over tetrodes.

Operation

A vacuum tube operates by heating the cathode, which causes it to emit electrons into the vacuum. When a positive voltage is applied to the anode (or plate), the electrons are attracted across the vacuum, creating a current. In a triode, the grid controls this current, allowing the tube to amplify the input signal.

Applications

While largely replaced by semiconductors in most electronic devices, vacuum tubes are still used in some applications where their particular characteristics are advantageous. These include:

• High-power RF amplifiers, such as those used in broadcasting and radar.
• Audio amplifiers, where many enthusiasts prefer the sound quality of tube-based amplifiers.
• Certain military and aerospace applications where the ability of vacuum tubes to withstand high levels of radiation and electromagnetic pulses is valuable.

Advantages and Disadvantages

Vacuum tubes have several advantages, including the ability to operate at high voltages and temperatures, and a level of robustness in harsh environments. However, they are larger, consume more power, and require more maintenance than semiconductor devices. They also have a shorter operational life due to the eventual depletion of the cathode's electron-emitting material.
